Here's the reality: most armbar injuries heal completely with proper rehabilitation. Worst case, you might have a bone fracture requiring medical intervention. Best case, a ligament or tendon sprain that responds beautifully to structured rehab. Either way, taking the right steps immediately determines whether you're back training in 3 weeks or dealing with chronic elbow problems for years.

This is the complete guide to armbar injury recovery—from the moment you get caught to full return to training. We've used this exact protocol with hundreds of grapplers, with a 95% success rate.

Why Armbars Cause So Much Damage

An armbar works by forcing your elbow past its natural straightening limit. When fully extended, the elbow "locks" mechanically—bone contacts bone. This creates a situation where enormous forces get transmitted through multiple structures simultaneously.

What makes armbar injuries different from other elbow injuries:

1. Multiple structures damaged at once Unlike tennis elbow or golfer's elbow (which affect one specific tendon), armbars damage several structures in the same incident:

• Ligaments (UCL primarily)

• Tendons (flexor-pronator group, bicep tendon)

• Joint capsule

• Sometimes bone

2. High force in milliseconds The speed and magnitude of force during an armbar creates more severe damage than chronic overuse injuries. Everything happens at once—there's no adaptation period.

3. Extreme end-range loading The elbow gets forced beyond its anatomical limit while under maximal muscle contraction (as you resist). This combination creates the worst-case loading scenario for tissues.

4. Compensatory shoulder involvement Defending armbars often creates secondary shoulder injuries that complicate elbow recovery if not addressed.

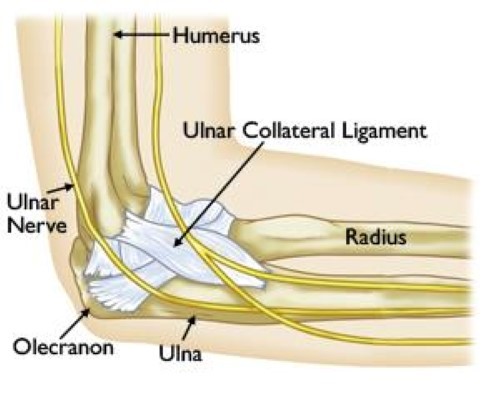

Anatomy: What Gets Damaged in an Armbar

Understanding the structures involved helps you rehab intelligently and recognize warning signs of serious injury.

Primary Structures Damaged:

1. Common Flexor Tendon (Most Common)

• Attachment for forearm flexor muscles on medial (inner) elbow

• Controls wrist and finger flexion

• Most frequently injured structure in armbar research (83% partial or complete rupture)

• Creates pain with gripping and pulling

• Tenderness just below medial epicondyle

2. Ulnar Collateral Ligament (UCL)

• Primary stabilizer preventing elbow from widening medially

• 100% of elite athletes in research had UCL damage (partial or complete)

• Can tear without creating obvious instability initially

• Same ligament baseball pitchers rupture (Tommy John surgery)

• Deep, achy pain on inner elbow

3. Bicep Tendon

• Attaches to radius bone in forearm

• Controls elbow flexion and forearm rotation

• Gets overstretched during armbar defense

• Pain in front of elbow or elbow crease

• Weakness with curling motions

4. Joint Capsule

• Surrounds entire elbow joint

• Becomes inflamed and restricted after injury

• Limits both bending and straightening

• Creates that "stuck" or "tight" feeling

• Always affected, often overlooked

5. Bone (Less Common But Serious)

• Olecranon (pointy part of elbow) can fracture

• Radial head fractures possible

• Bone bruising very common (67% in research)

• Requires imaging to diagnose

• Changes rehab timeline significantly

Secondary Structures:

• Ulnar nerve: Can get irritated, causing numbness in ring and pinky fingers

• Anterior capsule: Stretched during hyperextension

• Tricep tendon: Eccentrically loaded during resistance

The "pop" you hear: Usually indicates ligament or tendon rupture, not bone. But a fracture can occur silently, which is why proper assessment is critical.

Assessing Severity: Do You Need an X-Ray?

The first critical question after an armbar injury: Is anything broken?

The Elbow 4-Way Range of Movement Test

Research from 2008 (Appelboam et al.) showed this simple test has excellent sensitivity for ruling out fractures:

How to perform:

1. Flexion: Bend elbow fully (touch hand to shoulder)

2. Extension: Straighten elbow completely

3. Supination: Turn palm up while elbow bent 90 degrees

4. Pronation: Turn palm down while elbow bent 90 degrees

Interpretation:

• Can perform all 4 movements: Fracture highly unlikely (<50% chance even if present)

• Cannot perform one or more movements: >50% chance of fracture—get an x-ray

Important caveats:

• This test isn't 100% accurate

• Severe pain may limit motion even without fracture

• Small avulsion fractures can exist despite passing test

• When in doubt, get imaging

Other Red Flags Requiring Immediate Medical Evaluation:

• Obvious deformity of the elbow

• Severe pain (8-10/10) that doesn't improve within hours

• Numbness or tingling in hand (especially ring/pinky fingers)

• Significant weakness in grip or arm

• Rapidly increasing swelling

• Inability to move elbow at all

• Feeling of instability (elbow feels "loose" or like it's shifting)

If you have any of these, see a healthcare provider before starting self-treatment.

The Most Common Armbar Injuries (Research-Based)

A 2017 study analyzed elite BJJ competitors with armbar injuries during competition. Here's what the MRI imaging revealed:

Almeida et al. (2017) findings:

• 5/6 athletes (83%): Partial or complete flexor tendon rupture

• 6/6 athletes (100%): UCL rupture (partial or complete)

• 4/6 athletes (67%): Bone bruises or microfractures

• 6/6 athletes (100%): Joint effusion (swelling)

Critical insight: All athletes had normal x-rays initially, and most had negative instability tests despite confirmed ligament ruptures on MRI.

What this means for you: Even if your elbow "tests normal" and x-rays are clear, significant tissue damage may exist. Don't dismiss your injury just because initial assessment seems okay.

The 3-Phase Armbar Recovery Protocol

This is the system that's worked for 95% of the armbar injuries we've treated. Most athletes are back to full training in 8-12 weeks.

Phase 1: CONTROL Symptoms (Weeks 1-3)

Primary goals:

• Reduce pain to manageable levels (2-3/10 maximum)

• Restore full passive range of motion

• Control inflammation and swelling

• Begin tissue healing process

Key interventions:

1. Joint mobilization for flexion (bending)

Your elbow likely won't bend fully due to swelling, pain, and protective muscle guarding. This technique restores flexion:

Towel roll flexion gapping:

• Sit with arm extended

• Roll towel into 3-4 inch cylinder

• Place in elbow crease

• Grab wrist and pull forearm toward shoulder

• Hold 6 seconds, creating "hurts so good" stretch

• Pause without releasing

• Repeat 10 times, bending deeper each rep

• Perform 2-3 times daily

What you should feel: Deep joint pressure, gradual improvement in bend

2. Joint mobilization for extension (straightening)

Terminal extension (full straightening) is equally important and often overlooked:

Belt-assisted extension:

• Lie on back

• Loop belt around foot

• Hold belt ends in hands

• Straighten knee, pulling arm straight via belt

• Apply overpressure for 5 seconds

• Relax, repeat 15 times

• Perform 2 times daily

3. Soft tissue work

Reduce muscle tension pulling on damaged structures:

Forearm flexor release:

• Use lacrosse ball or foam roller

• Target forearm flexors (palm-side forearm)

• 2-3 minutes per arm

• Reduces pulling force on medial elbow

Bicep soft tissue work:

• Roll bicep on barbell or similar

• Slowly flex and extend elbow during rolling

• 2-3 minutes

• Reduces tension on bicep tendon

4. Activation in new range

After mobilization, LOAD the improved range to make it stick:

End-range loading:

• Use light dumbbell or band

• Position elbow as straight as possible

• Hold for 5 seconds

• Repeat 20 times

• Teaches nervous system new range is safe

5. Ice and compression

• 15-20 minutes after rehab sessions

• Especially important first 10 days

• Reduces inflammation and pain

• Don't ice before training/activity (reduces tissue extensibility)

6. Activity modification

• Avoid aggravating positions (armbar defense, extended arm grips)

• May continue light technical drilling if pain <3/10

• No live rolling initially

• Focus on non-gi or positions that don't stress elbow

Success markers for Phase 1:

• Full passive range of motion (can bend and straighten fully)

• Pain at rest = 0/10

• Pain with gentle movement = 2-3/10 maximum

• Minimal swelling

• Can perform daily activities without limitation

Timeline: Most athletes achieve these markers in 2-3 weeks with consistent daily work.

Phase 2: BUILD Strength (Weeks 4-8)

Primary goals:

• Restore strength to pre-injury levels (80-100%)

• Build tissue capacity for training demands

• Address contributing factors (shoulder restrictions)

• Begin sport-specific movements

Progressive loading protocol:

Weeks 4-5: Light resistance (20-30% capacity)

Bicep curls:

• 3 sets x 15 reps

• 5-second eccentric (lowering) phase

• Pain should be 0-2/10 maximum

Wrist flexion curls:

• 3 sets x 15 reps

• Palm up, curl wrist only

• Targets flexor-pronator mass

Pronation/supination:

• Hold light dumbbell vertical

• Rotate palm up and down

• 3 sets x 12 each direction

Tricep extensions:

• Light resistance band

• 3 sets x 15 reps

• Slow and controlled

Weeks 6-7: Moderate resistance (50-60% capacity)

• Increase weight

• Reduce reps to 10-12

• Add isometric holds at end-range (5 seconds)

• Introduce pulling movements:

  • Assisted pull-ups

  • Light rows

  • Band pull-aparts

Week 8+: Progressive overload (70-90% capacity)

• Approach normal training loads

• 8-10 reps per set

• More challenging gripping exercises

• Sport-specific positioning drills

• Begin light partner drilling

Critical rule: Never train through sharp pain (>5/10). Some discomfort during exercise is acceptable and even beneficial, but sharp pain indicates excessive loading.

Address upstream restrictions:

Shoulder internal rotation limitation is the #1 root cause of elbow injuries in grapplers. If your shoulder can't move properly, your elbow compensates and gets overloaded.

Test: Lie on back, shoulder at 90 degrees, rotate forearm toward body. Should achieve 40+ degrees.

If limited:

• Daily sleeper stretches

• Posterior capsule mobilization

• See our shoulder internal rotation guide

• 2-3 minutes daily until restored

Success markers for Phase 2:

• Strength within 80-90% of uninjured arm

• Can perform push-ups pain-free

• Gripping activities pain-free

• Confidence in joint restored

• Ready for modified training

Phase 3: MAINTAIN & Return to Training (Weeks 9-12+)

Primary goals:

• Full return to training without restrictions

• Prevent recurrence

• Long-term tissue health

• Performance optimization

Gradual training progression:

Weeks 9-10: Technical drilling

• No live rolling yet

• Light drilling with trusted partners

• Communicate about injury

• Avoid armbar positions completely

• Continue strengthening 2x weekly

Weeks 11-12: Light rolling

• 50-60% intensity

• Tap much earlier to armbars

• Choose partners carefully

• May tape for confidence/support

• Monitor pain response closely

Week 12+: Full training

• Return to normal intensity gradually

• Continue strengthening 1-2x weekly (maintenance)

• Address any minor tweaks immediately

• Consider taping during competition

Long-term prevention:

• Maintain shoulder mobility

• Ongoing elbow strengthening 1-2x weekly

• Proper warmup before training

• Tap earlier, especially to armbars

• Don't let ego override injury prevention

Common Mistakes That Slow Recovery

Mistake #1: Just resting without rehabilitation Complete rest for weeks weakens tissues. You need carefully dosed loading to stimulate proper healing and tissue remodeling.

Mistake #2: Skipping the mobilization phase Going straight to strengthening when you lack full range of motion creates compensatory patterns and incomplete recovery.

Mistake #3: Returning to rolling too soon Feeling better doesn't mean healed. Tissues need 8-12 weeks to develop adequate strength for full training demands.

Mistake #4: Ignoring the shoulder If you don't fix limited shoulder internal rotation, you haven't addressed why you got injured. The problem will return.

Mistake #5: Training through pain Mild discomfort (2-4/10) during rehab is okay. Sharp pain (5+/10) means you're reinjuring yourself. Respect pain signals.

When Surgery Might Be Necessary

Most armbar injuries heal with conservative treatment. However, some situations may require surgical consultation:

Surgical indications:

• Complete UCL tear in competitive athletes requiring maximum stability

• No improvement after 12 weeks of proper rehab

• Persistent instability affecting daily activities

• Large bone fragments or significant fracture

• Nerve compression not resolving with conservative care

Tommy John surgery (UCL reconstruction):

• Same procedure as baseball pitchers

• 12-18 month recovery timeline

• 85% success rate for return to sport

• Reserved for complete tears in athletes with high demands

Most recreational BJJ practitioners do not need surgery. Conservative rehab succeeds in 85-90% of cases.

Conclusion

Armbar injuries don't have to end your training career. With proper assessment, structured rehabilitation, and patience during the recovery process, you can return to full training stronger than before.

Key takeaways:

1. Assess severity first - Use 4-way movement test to rule out fracture

2. Multiple structures are damaged - UCL, flexor tendons, capsule, sometimes bone

3. Follow the 3-phase protocol: Control (1-3 weeks) → Build (4-8 weeks) → Maintain (9-12+ weeks)

4. Loading is critical - Mobilization alone won't create lasting recovery

5. Address the shoulder - Limited internal rotation is the #1 root cause

6. Most injuries heal conservatively - Surgery rarely needed

If you're dealing with an armbar injury right now, don't wait. Start Phase 1 today and give your elbow the structured rehab it deserves.

Related Resources:

• BJJ Elbow Injuries Hub

• Can't Straighten Arm After Armbar

• Do You Need an X-Ray After Armbar

• Tennis Elbow vs Bicep Tendon

• Free Elbow Injury Guide
